1. 5 long lasting contour tracking EVA brushes: 2 vertical, 1 horizontal, and 2 skirt.

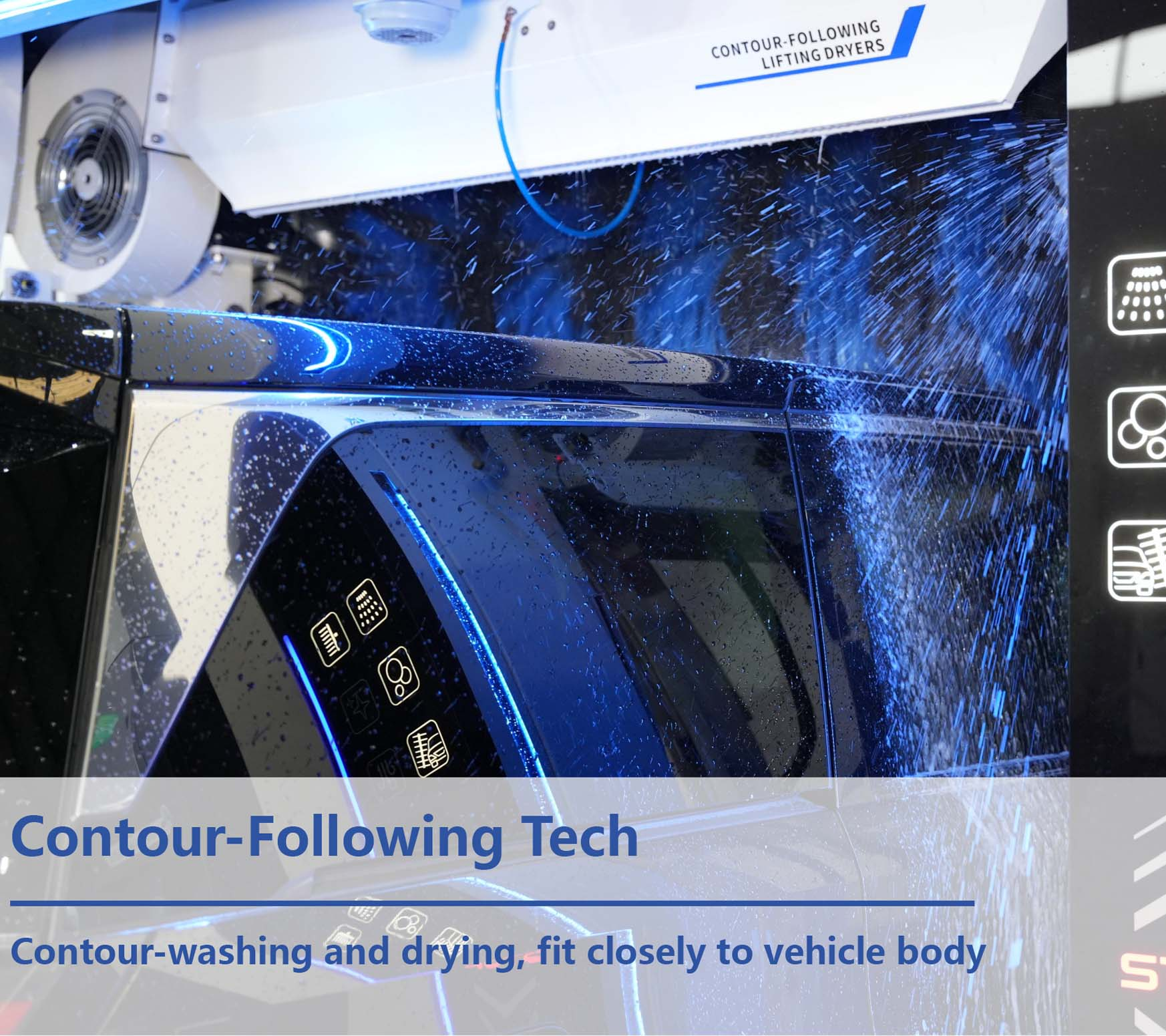

2. Multiple sensors ensure precise contour following to maximize cleaning performance while avoid scratching.

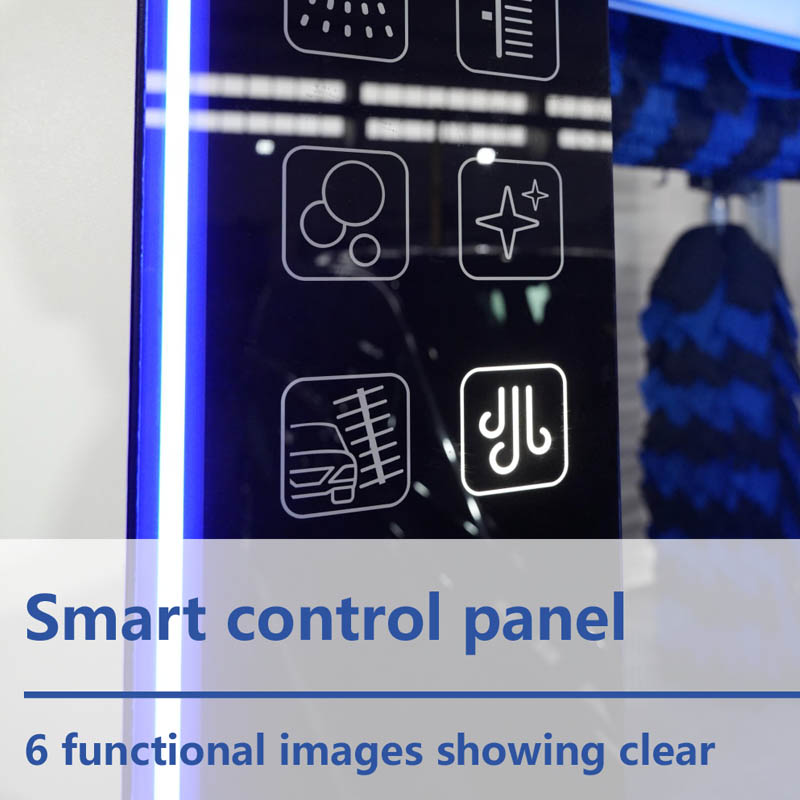

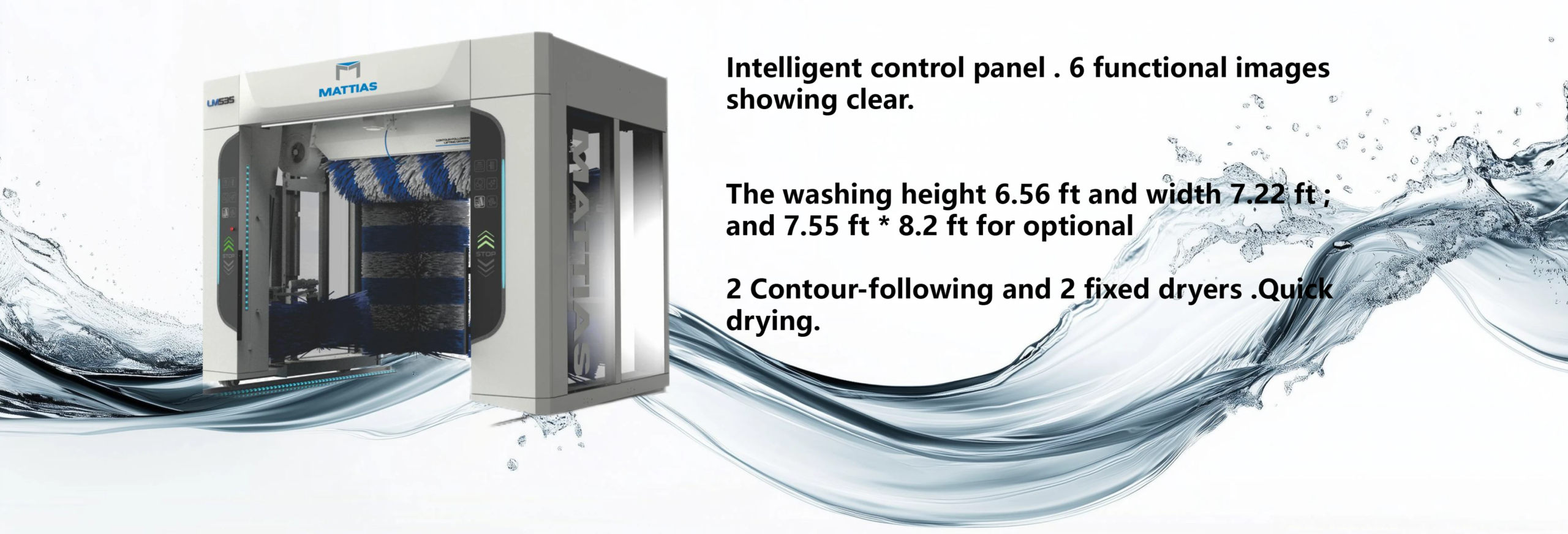

3. Intelligent control panel enables customer to choose their preferred washing mode/ program.

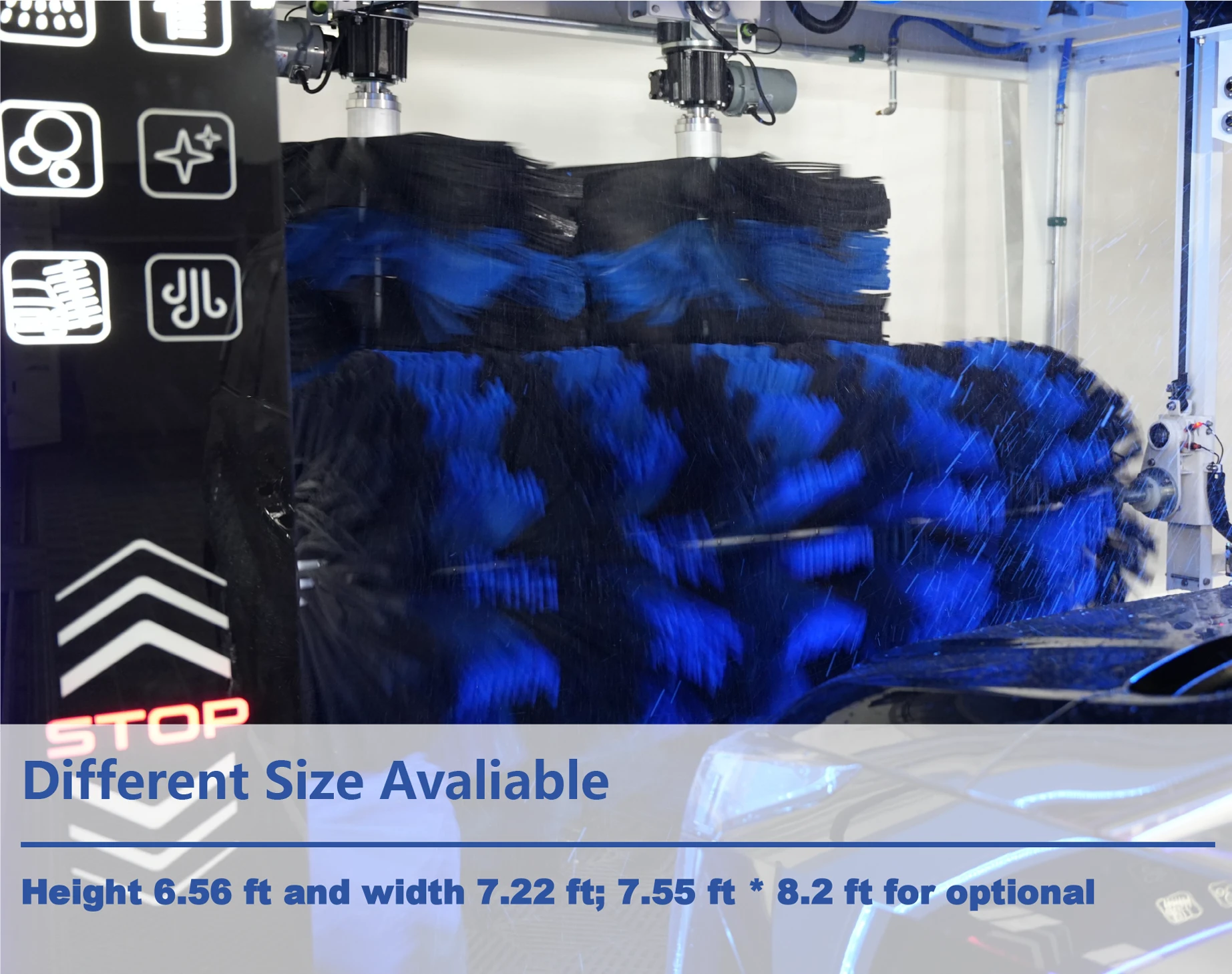

4. Customizable height and width options (Default: H6.6 x W7.2′ /H2m x W2.2m; Optional: H7.5′ x W8.2′ / H2.3m x W2.5m).
5. High power dryer for effective drying: 2 Contour-following and 2 fixed .
6. Intelligent self-testing and unattended system enables remote operation and reduce labor cost
7. Hot-dipped galvanizing of steel frames extends life and reduces corrosion;
8. Vehicle guiding feature (optional) minimize the possibility of damaging to vehicle or washing equipment.
9. Intelligent parking guidance(optional), Optimize the experience and easy management.
10. Super high pressure water pre-flushing system (optional) for customer with high cleaning performance requirement.
| Product categories | Roll-over | ||
| Model | M-LM535 | ||

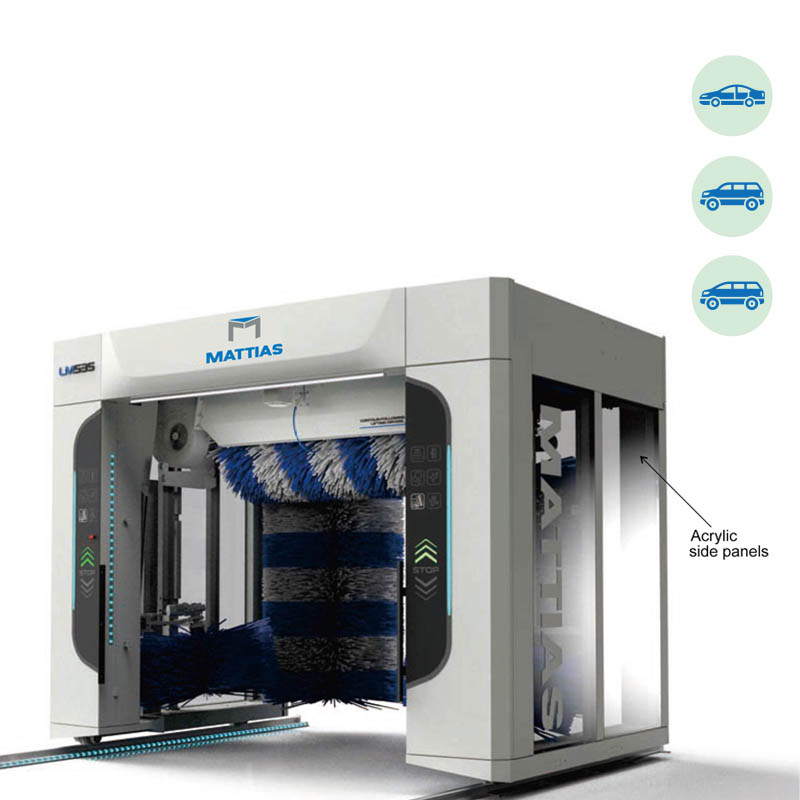

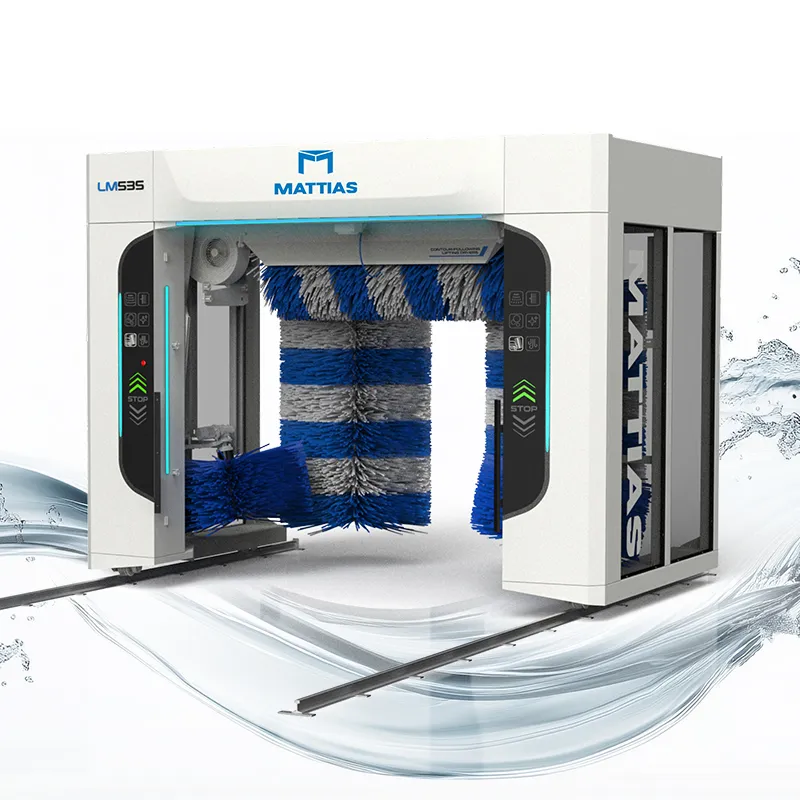

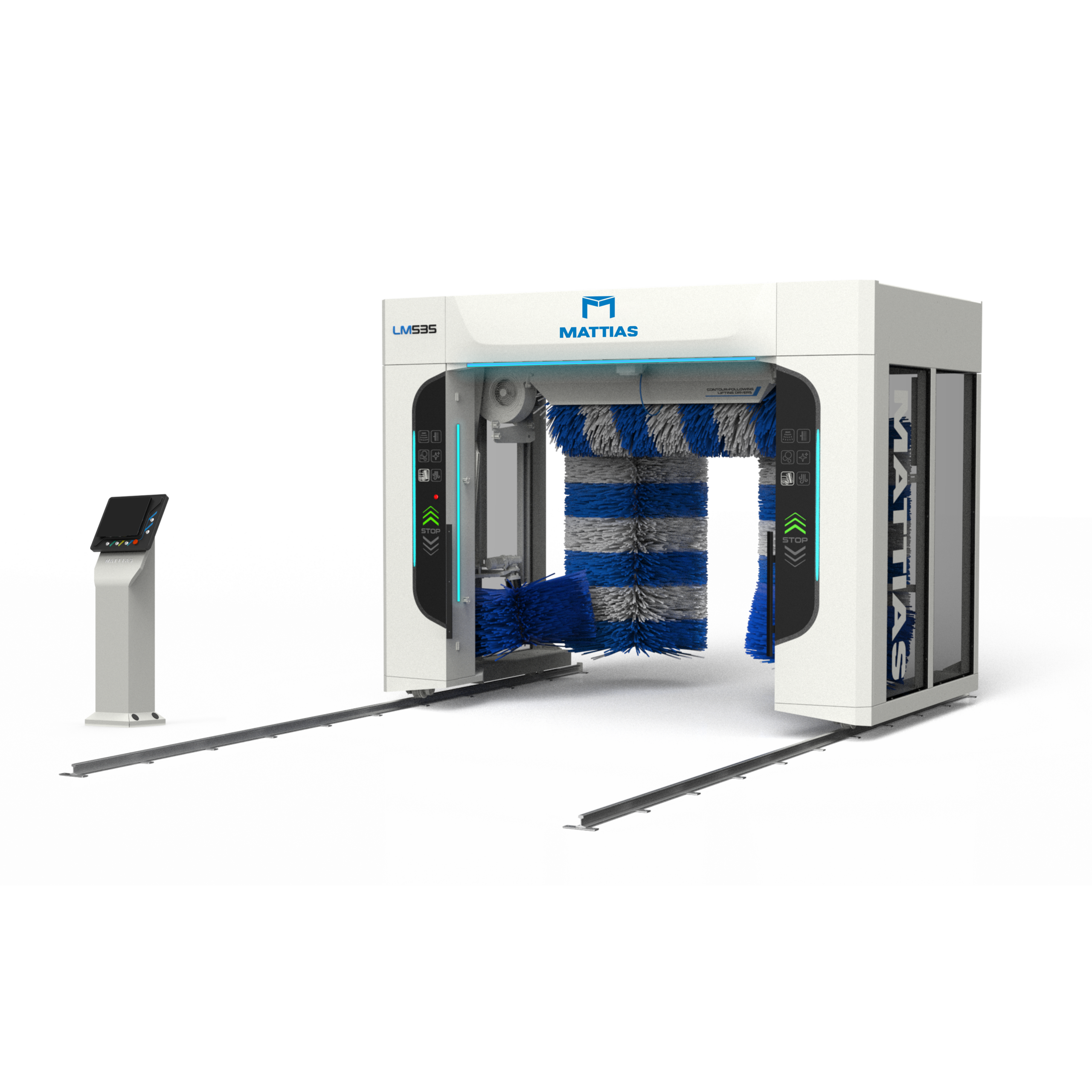

| Product name | Roll-over Car Wash | ||
| Machine Dimensions | ft | L | 8.04 |
| ft | W | 12.14 | |
| ft | H | 9.51 | |
| Installation Space | ft | L | 32.81 |
| ft | W | 13.12 | |
| ft | H | >11.48 | |
| Equipment Room (subject to change according to customer requirements) |
ft | L | – |
| ft | W | – | |
| ft | H | – | |
| Rail Dimensions | ft | L | 31.17 |
| ft | W | 10.79 | |
| Max.Washable Car Dimensions | ft | L | 17.72 |
| ft | W | 7.22 | |
| ft | H | 6.56 | |
| Car Wash Mode | Up to 5 Modes/Program | ||
| Washing Mode | Mode 1 | (→) Foam car wash soap brushing+spray water wax (←) Air drying | |
| Mode 2 | (→) Foam car wash soap brushing (←) Spray water wax | ||
| Mode 3 | (→) Foam car wash soap brushing (←) Clean water brushing+spray water wax（→+←）Airy drying | ||
| Mode 4 | （→+←）Air drying | ||
| Mode 5 | – | ||
| Estimated Wash Time | min/car | Mode 1 | 3.25 |
| min/car | Mode 2 | 3 | |
| min/car | Mode 3 | 6 | |
| min/car | Mode 4 | 2.5 | |
| min/car | Mode 5 | – | |
| Estimated Power Consumption | kWh/car | Mode 1 | 0.95 |
| kWh/car | Mode 2 | 0.7 | |
| kWh/car | Mode 3 | 1.5 | |
| kWh/car | Mode 4 | 0.8 | |
| kWh/car | Mode 5 | – | |
| Estimated Water Consumption | gal/car | Mode 1 | 29.06 |
| gal/car | Mode 2 | 39.63 | |
| gal/car | Mode 3 | 39.63 | |
| gal/car | Mode 4 | – | |
| gal/car | Mode 5 | – | |
| Estimated Wash Liquid Consumption | fl oz/car | Mode 1 | 0.64 |
| fl oz/car | Mode 2 | 0.64 | |
| fl oz/car | Mode 3 | 0.64 | |
| fl oz/car | Mode 4 | – | |
| fl oz/car | Mode 5 | – | |
| Estimated Water Wax Consumption | fl oz/car | Mode 1 | 0.51 |
| fl oz/car | Mode 2 | 0.51 | |
| fl oz/car | Mode 3 | 0.51 | |
| fl oz/car | Mode 4 | – | |
| fl oz/car | Mode 5 | – | |
| Wipe-free Solution | fl oz/car | Mode 1 | – |
| fl oz/car | Mode 2 | – | |
| fl oz/car | Mode 3 | – | |
| fl oz/car | Mode 4 | – | |
| fl oz/car | Mode 5 | – | |
| Rated Power (including air/dryer/water pump) |
kW*个 | 30.5 | |
| Rated Voltage | – | 3-ph AC380V 50Hz | |
| Air Source Requirement | Mpa | 0.6~0.8 | |
| Chassis Travel Motor | kW*1 | 0.18*2 | |
| Conveyor motor | kW*1 | – | |
| Main Unit Moving Motor | kW*1 | – | |
| Top Brush Rotation Motor | kW*1 | 0.75*1 | |
| Top Brush Lifting Motor | kW*1 | 0.75*1 | |
| Side Brush Rotation Motor | kW*1 | 0.75*2 | |
| Side Brush Open & Close Motor | kW*1 | 0.18*2 | |
| Side Brush Moving Motor | kW*1 | – | |
| Rocker Panel Brush Rotation Motor | kW*1 | 0.37*2 | |
| Wheel Brush Rotation Motor | kW*1 | – | |
| Wheel Brush Forward and Backward Movement Motor | kW*1 | – | |
| Side Horizontal Brush Rotation Motor | kW*1 | – | |
| Side Drying Brush Rotation Motor | kW*1 | – | |
| Top Drying Brush Lifting Motor | kW*1 | – | |
| Top Drying Brush Rotation Motor | kW*1 | – | |
| Top Polishing Oscillation Motor | kW*1 | – | |
| Top Drying Oscillation Motor | kW*1 | – | |
| Total Power of Dryer | kW*1 | 22 | |
| Top Dryer Motor | kW*1 | 5.5*2 | |
| Top Dryer Lifting Motor | kW*1 | 0.75*1 | |
| Side Dryer Motor | kW*1 | 5.5*2 | |
| Top Dryer Motor | kW*1 | – | |
| Top Dryer Rotation Motor | kW*1 | – | |
| Submersible Pump Power | kW*1 | 2.2*1 | |
| Submersible Pump Pressure | Mpa | 0.96 | |
| Submersible Pump Flow Rate | ft³/h | 105.94 | |
| Multistage Centrifugal Pump Power | kW*1 | Optional | |
| Multistage Centrifugal Pump Pressure | Mpa | Optional | |
| Multistage Centrifugal Pump Flow Rate | ft³/h | Optional | |
| Plunger Pump Motor | kW*1 | Optional | |
| Plunger Pump Pressure | MPa*1 | Optional | |
| Plunger Pump Flow Rate | gal/min*1 | Optional | |
| Self-Priming Pump Power | kW*1 | – | |
| Self-Priming Pump Pressure | kW*1 | – | |
| Self-Priming Pump Flow Rate | kW*1 | – | |
| Proportioning Pump Power | kW*1 | – | |
| Proportioning Pump Pressure | bar*1 | 6 | |
| Proportioning Pump Flow Rate | gal/h*1 | 0.79 | |
| High-Pressure Water Oscillation Motor | kW*1 | – | |
| Top Sprayer Lifting Motor | kW*1 | – | |
| Top Sprayer Oscillation Motor | kW*1 | – | |
| Top Sprayer Rotation Motor | kW*1 | – | |
| Side Sprayer Oscillation Motor | kW*1 | – | |
| High-Pressure Swing Arm Rotation Motor | kW*1 | – | |
| High-Pressure Swing Arm Horizontal Movement Motor | kW*1 | – | |
| Front | ● | ||
| Both sides | ● | ||
| Rear | ● | ||
| Roof | ● | ||
| Customer-supplied Water Tank Specifications | tons | 2 | |
| Customer-supplied Air Compressor Specifications | 2.2kW, 100L, 0.8MPa | ||
| Customer-supplied Air Compressor model | PLV2070-FJ | ||
| Top Dryer | Unit | 2 | |
| Side Dryer | Unit | 2 | |
| Top Brush | Unit | 1 | |
| Side Brush | Unit | 2 | |
| Rocker Panel Brush | Unit | 2 | |
| Wheel Brush | Unit | – | |
| Side Horizontal Brush | Unit | – | |
| Top Drying Brush | Unit | – | |
| Polishing Top Brush | Unit | – | |
| Side Drying Brush | Unit | – | |
| Top Brush | EVA (Nylon optional) | ||
| Side Brush | EVA (Nylon optional) | ||
| Rocker Panel Brush | EVA (Nylon optional) | ||
| Wheel Brush | Optional | ||
| Side Horizontal Brush | – | ||
| Top Drying Brush | – | ||
| Top Polishing Brush | – | ||
| Side Drying Brush | – | ||
| Top High-Pressure Nozzle | Unit | Optional | |
| Undercarriage wash | Unit | – | |
| Side High-Pressure Nozzle | Unit | Optional | |
| High-Pressure Nozzle Material | Stainless steel | ||
| Car Wash Liquid Material | Foam/Water | ||
| Overall Machine Frame Structure | Hot-dip galvanizing | ||
| Control System | Standard | ||
| Travel System | Standard | ||
| Conveyor System | – | ||
| Display System | Standard | ||
| Smart Touchscreen Control | Standard | ||
| Collision Avoidance System | Optional | ||
| Guidance Device | Standard | ||
| Foam Spray | Standard | ||
| Foam Curtain | – | ||
| Shampoo Spray | – | ||
| Water Wax Spray | Standard | ||
| Acidic Car Wash Solution Spray | – | ||
| Alkaline Car Wash Solution Spray | – | ||
| Wipe-free Solution Spray | – | ||
| Siphon Cleaning Solution System | – | ||
| Automatic Proportioning Pump Solution System | Standard | ||
| Swing High-Pressure Water Rinse | – | ||
| Rotating High-Pressure Water Rinse (WS100) | – | ||
| 180° Rotating High-Pressure Rinse | – | ||
| Rearview Mirror Washing Function (Brushless) | – | ||
| High-Pressure Water Pre-Rinse | Optional | ||
| Manual Single-Step Car Wash | – | ||
| Chassis Wash | Optional | ||
| Rocker Panel Rinsing | – | ||
| Rocker Panel Scrubbing | Standard | ||
| Wheel Scrubbing | Optional | ||
| Contour-Following Top Spray Function (Clear Water) | – | ||
| Contour-Following Brush Wash Function | Standard | ||
| Side Brush Follow-Wash Function | Standard | ||
| Rearview Mirror Avoidance Wash Function (With Brush) | Standard | ||
| Side Brush Over-Center Line Wash Function | Standard | ||
| Embedded Side Dryer System | – | ||
| Contour-Following Top Dryer System | Standard | ||
| Fixed Top Dryer System | – | ||
| Swing Top Dryer System | – | ||
| Side Dryer System | – | ||
| Rotating Follow Dryer System (40m) | – | ||
| Vehicle Width Detection | – | ||
| Vehicle Position Detection | – | ||
| Car Wash Count Statistics | Standard | ||
| Fault Self-Check Parking Alarm System | Standard | ||
| Intelligent Parking Guidance Function | Optional | ||
| Winter Anti-Freeze System | Standard | ||
| Intelligent Low-Temperature Start-Stop System (<4°) | Optional | ||
| Anti-Leakage Function | Standard | ||
| Phase Loss Power-Off Protection Function | Standard | ||
| Non-Power-Assisted Sliding Rail Suspension System | – | ||
| Unattended System | Optional | ||
| Voice Broadcast System | Optional | ||
| Wide-Angle Mirror | Optional | ||
| Wireless Remote Control | Optional | ||
| Electronic Payment Function | Optional | ||
| Stored Value Card Payment Function | – | ||
| Cash Payment | – | ||
| Bank Card Payment | – | ||
